Buttweld Fittings



STANDARD :  All Dimensions are in mm and Confirm to ANSI B 16.9 and MSS SP -43.
RADIUS :  Radius of Short Radious Elbows is 1 times nominal Pipe Diameter. Radius of Long  Radius Elbows is 1-1/2 nominal pipe diameter
MATERIAL :  S.S. 304 / 304L / 316 / 316L / 321 Carbon Steel & Alloy Steel

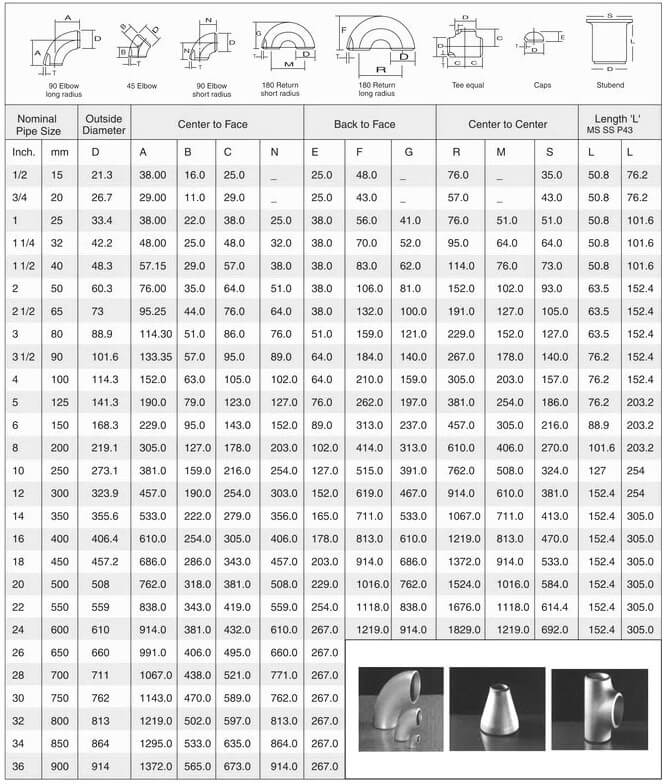

BUTT WELDING PIPE FITTING DIMENSIONAL STANDARD ANSI B-16.9, B-16.28 & MS SS P43
